Imes-Icore

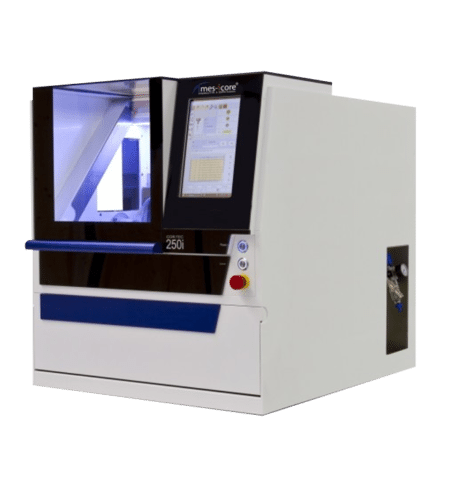

CORiTEC 250i/250i Dry Touch

Touch screen and 5-axis technology and optional wet processing.

The most widely used entry level system, the CORiTEC 250i and 250i Dry, use 5-axis technology to produce complex dentures with diverging stumps without rework. Ideal as a good price to performance option, the CORiTEC 250i is a very flexible solution

Great Price to Performance, with Perks

The CORiTEC 250i/250i Dry are ideal as entry level systems because of their capabilities, while still remaining cost-effective. 5-axis milling with wet and dry capabilities for materials like aluminum oxide, PMMA, plastics, composites, wax, as well as glass and hybrid ceramics. The touch screen creates a more simplified user experience for all users from small to large labs.

CORiTEC 250i/250i Dry  Key Highlights

Touch and Go

The CORiTEC 250i/250i Dry features a new large touch screen putting all your controls conveniently on the system. Easily control the CORiTEC 250i’s 10-fold tool changer and many other features, allowing this 5-axis system (with 30 degree axis orientation) to produce high quality results every time.

Cooled, Controlled and Compact

The CORiTEC 250i and 250i Dry are compact units equipped with an air purge system and cooling nozzles for wet processing, right in the spindle holder. The integrated cooling circuit for cooling lubricant and automatic coolant monitoring allow for the processing of materials like Zirconium Dioxide, PMMA, Wax, Plastics, and grindable block materials, all in one compact unit.

CORiTEC 250i/250i Dry Specifications

# of Axles & Machining Type
# of Axles & Machining Type
5 axes, simultaneous machining
Max. Tilt Angle (Rotary Axis)
Max. Tilt Angle (Rotary Axis)
A-axis +/- 30 degrees | B-axis +/- 25 degrees
Wet Processing
Wet Processing
Integrated only in CORiTEC 250i
Spindle Max.
Spindle Max.
60,000 rpm / 0.4kW
Axle Drives
Axle Drives
Microstep motors
Tool Fitting
Tool Fitting
3mm shaft
Tool Changer
Tool Changer
10-fold
Workpiece Changer
Workpiece Changer
manual
Weight
Weight
85kg
Width x Depth x Height
Width x Depth x Height
520 x 550 x 650mm
Main voltage/frequency/power
Main voltage/frequency/power
100V-240V/50-60Hz/900W
Compressed Air Supply
Compressed Air Supply
6-9 bar constant supply, 50 litres/minute
Materials
Materials
zirconium dioxide, alimunium oxide, PMMA, plastics, composites, wax, glass ceramics, hybrid ceramics (only 250i)
Compatibility
Compatibility
98mm/98.5mm blanks CAD/CAM blocks (3 fold adapter), Lava frames
