Imes-Icore

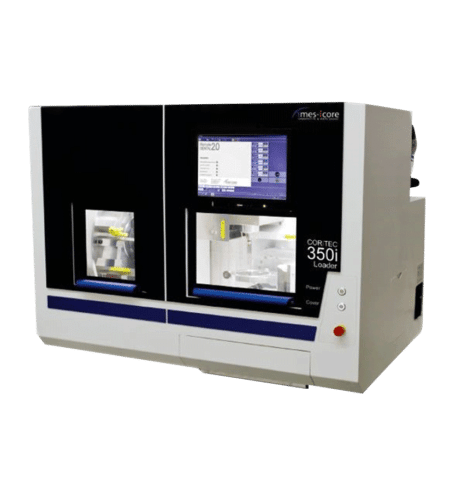

CORiTEC 350i/
350i Loader

Zero point clamping system for easy blank changes at the press of a button.

A revolution in automatic production, the CORiTEC 350i & 350i Loader allow you to change blanks at the touch of a button, and allows processing for up to 12 blanks with its automatic changer.

 One Machine, Any Material

The CORiTEC 350i and 350i Loader systems meet all modern requirements for CAD/CAM processing. They are able to process all relevant blank materials from CoCr, titanium, zirconium dioxide, plastics, block materials and even future materials with virtually no restrictions. With the added feature of a 12 blank automatic changer, it becomes the ideal solution for demanding lab requirements.

CORiTEC 350i/350i Loader Key Highlights

Coritec 350i 20-fold tool changer automatic

All Around Performance

The CORiTEC 350i/350i Loader uses optimized machine kinematics  to allow for high quality milling and grinding in wet and dry processing. This makes the system ideal for demanding labs as an all-rounder to produce typical applications in-house.

Coritect 350i Loader automatic blank changer

Automatic Blank Changing

The CORiTEC 350i Loader allows for up to 12 blanks to be automatically changed with a zero point clamping system. Along with the 20-fold tool changer, the CORiTEC 350i Loader allows you to streamline the process by eliminating the need to manually change blanks and tools, saving time, money and human resources.

CORiTEC 350i/350i Loader Specifications

# of Axles & Machining Type
# of Axles & Machining Type
5 axes, simultaneous machining
Max. Tilt Angle (Rotary Axis)
Max. Tilt Angle (Rotary Axis)
A-axis +/- 30 degrees | B-axis +/- 25 degrees
Wet Processing
Wet Processing
Integrated
Spindle Max.
Spindle Max.
60,000 rpm / 1kW
Axle Drives
Axle Drives
servomotors
Tool Fitting
Tool Fitting
6mm shaft
Tool Changer
Tool Changer
20-fold with chip protection cover
Workpiece Changer
Workpiece Changer
manual/optional: with zero point clamping system
Weight
Weight
180kg / 225kg with Loader
Width x Depth x Height
Width x Depth x Height
758 x 790 x 857mm
1058 x 790 x 857mm with Loader
Main voltage/frequency/power
Main voltage/frequency/power
100V-240V/50-60Hz/2300W
Compressed Air Supply
Compressed Air Supply
6-9 bar constant supply, 80 litres/minute
6-9 bar constant supply, 100 litres/minute (with Loader)
Materials
Materials
CoCr/NEM, titanium, zirconium dioxide, alimunium oxide, PMMA, plastics, composites, wax, glass ceramics, hybrid ceramics
Compatibility
Compatibility
98mm/98.5mm blanks CAD/CAM blocks, NT-Trading pre-milled abutments, Medentika PreFace abutments, Lava frames
