Rapidshape D50+
RAPIDSHAPE
D50+
The more, the better.
The Rapidshape D50+ has a print range three times (3x) larger than the D30+.
For an even greater dental lab productivity, with the optional patented separation unit, you can skyrocket the number of pieces 3D printed in a day.
Fully automated all-rounder 3D printer
The Rapidshape D50+ is an all-rounder dental 3D printer for almost any dental indication with high 4K precision. The printed parts are automatically separated from the build platform when the printing is completed and collected in a collection basket. The next print job is then started immediately, without manual intervention. An Automated Refill unit ensures that there is always a sufficient level of printing material in the reservoir.
Rapidshape D50+
Essential Features for Labour-Saving Workflow & Higher Productivity
- Automatic Separation Module (ASM)
- Resin Temperature Control
- Automatic Door Opener
- Material Identification (RFID)
- Certified Auto Calibration (ACCS)
- Integrated Force Feedback
- Remote Access Available
With a professional and validated workflow possible, D50+ was designed to produce up to 11 models in one cycle.
Key Features
Automatic Separation Module (ASM)
Designed for Volume Production
Cost Efficient Productivity
Open System
Automatic Resin Refill
User Friendly
Certified Auto Calibration (ACCS)
Integrated Force Feedback
Remote Access Available
Automated Post-Processing
With Rapidshape Dental 3D printing solutions you have an integrated semi-automated workflow for post-processing. This allows you to seamlessly cure and clean parts coming right off the printer
RS Wash
Rapid Shape Wash offers the perfect finish for dental products from the printer, automatically and with an environmentally-friendly cleaning.
The RS Wash automated cleaning system boasts several new features to make cleaning your prints safe and easy (patents pending). Fully automatic cleaning is possible in approximately 6-8 minutes, without the need to handle sticky resins. Easily achieve optimal results without wasting cleaning materials. The RS Wash connects wirelessly to your printer, streamlining how you clean your prints.
-
Effective computer controlled cleaning agents use
-
Exchangeable liquid container (plug-in system)
-
Stackable with RS Cure
Wireless printer connectivity
Clean process.
No handling of sticky resins.
Reduced smell
RS Cure
Safety and speed throughout the entire production process: 360° curing with certified programs.
The RS Cure unit offers a validated material curing in just about 6-10 minutes. The illumination system cures homogeneously from all sides by powerful LEDs in combination with heating and vacuum (patents pending). The radiation covers the UVA and UVB spectrum.
Mechanical properties and biocompatibility of the final product are certified by various material suppliers. Equipped with a data link to the 3D printer, the right curing program is pre-selected and starts with the touch of a button.
- 360° illumination in one go
- Certified auto calibration (ACCS)
- Stackable with RS Wash
Validated process
Compatible materials
Works with vacuum
Wireless printer connectivity
D50+ Technical Specifications
Building Area |
Building Area231 x 130 mm |
Native Pixel |
Native Pixel+/- 30 microns |
Max. Part Height |
Max. Part Height300 mm [with ASM: 100 mm] |
Light Source |
Light Source385 nm LED |
Resolution |
Resolution4K, 3840 x 2160 px |
Dimension (W x H x D) |
Dimension (W x H x D)600 x 1660 x 570 mm |
Connections |
ConnectionsWLAN, Ethernet, USB |

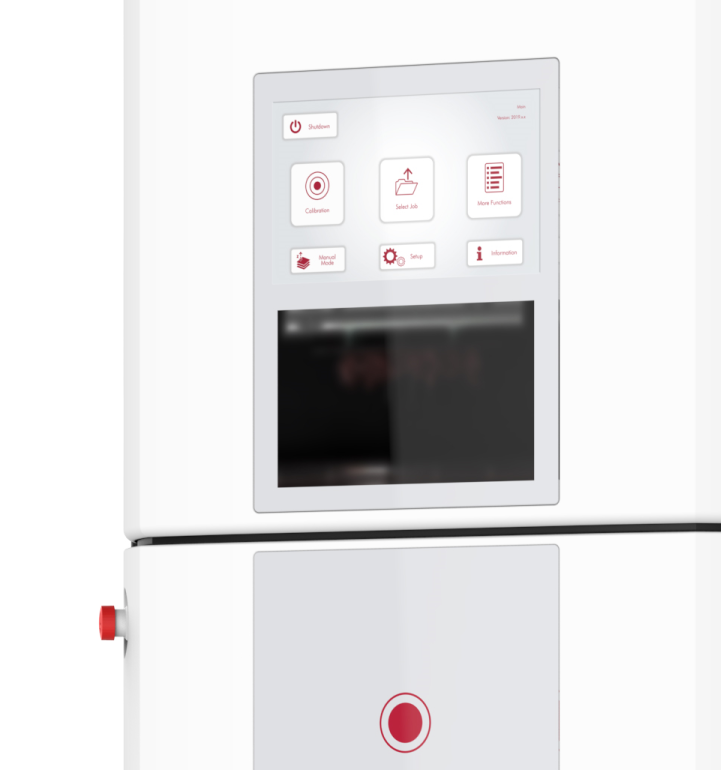

Control |
Control10" LCD-Display with touch-screen |
