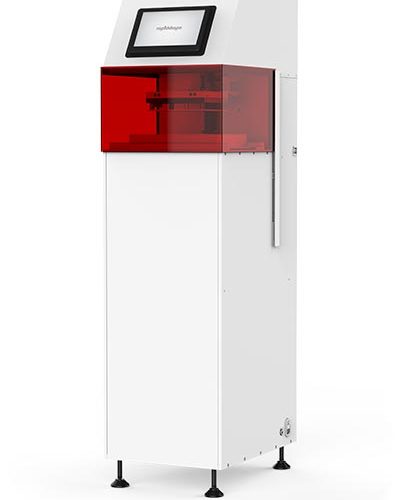

Rapidshape D70+
RAPIDSHAPE
D70+
Continuous high volume production of dental parts
Rapidshape D70+ was designed and built for continuous, 24/7 industrial volume production. The modular high-performance subsystems with a dual-circuit cooling system and heat exchanger ensure optimum operation.
24/7 production on 100% load
The Rapidshape D70+ has all the needed features for the high-volume production of dental parts. It is a true industrial-grade printer engineered for 24/7 production on 100% load and its open system architecture gives you the flexibility to work with a wide range of materials. For a precise operation, D70+ has modular high-performance subsystems including a dual-circuit system with a heat exchanger.
Rapidshape D70+
Essential Features for Non-stop Productivity
- AC Controlled Interior for Continuous Use
- Certified Auto Calibration (ACCS)
- Optional Automatic Resin Refill
- Remote Control by Team Viewer®
- Web-browser Access
Key Features
Automatic Separation Module (ASM)
Designed for Volume Production
Cost Efficient Productivity
24/7 Continuous Manufacturing
Open System
Certified Auto Calibration (ACCS)
Automatic Resin Refill
Remote Access Available
Automated Post-Processing
With Rapidshape Dental 3D printing solutions you have an integrated semi-automated workflow for post-processing which allows you to seamlessly cure and clean parts coming right off the printer
RS Wash
Rapid Shape Wash offers the perfect finish for dental products from the printer, automatically and with an environmentally-friendly cleaning.
The RS wash automated cleaning system boasts several new features to make cleaning your prints safe and easy (patents pending). Fully automatic cleaning in approximately 6-8 minutes without the need to handle sticky resins. Easily achieve optimal results without wasting cleaning materials. The RS wash connects wirelessly to your printer, streamlining how you clean your prints.
-
Effective computer controlled cleaning agent use
-
Exchangeable liquid container (plug-in system)
-
Stackable with RS cure
Wireless printer connectivity
Clean process
No handling of sticky resins.
Reduced smell
RS Cure
Safety and speed throughout the entire production process: 360° curing with certified programs.
The RS cure unit offers a validated material curing in just about 6-10 minutes. The illumination system cures homogeneously from all sides by powerful LEDs in combination with heating and vacuum (patents pending). The radiation covers the UVA and UVB spectrum.
Mechanical properties and biocompatibility of the final product is certified by various material suppliers. Equipped with a data link to the 3D printer, the right curing program is pre-selected and starts with the touch of a button.
- 360° illumination in one go
- Certified auto calibration (ACCS)
- Stackable with RS Wash
Powered by Vat-Photopolymerisation
Speak to an expert to understand why DLP 3D printing processes and technologies
are a game-changer for the dental industry
D50+ Technical Specifications
Building Area |
Building Area231 x 130 mm |
Native Pixel |
Native Pixel+/- 30 microns |
Max. Part Height |
Max. Part Height300 mm [with ASM: 100 mm] |
Light Source |
Light Source385 nm LED |
Resolution |
Resolution4K, 3840 x 2160 px |
Dimension (W x H x D) |
Dimension (W x H x D)600 x 1660 x 570 mm |
Connections |
ConnectionsWLAN, Ethernet, USB |
Control |
Control10" LCD-Display with touch-screen |
