Imes-Icore

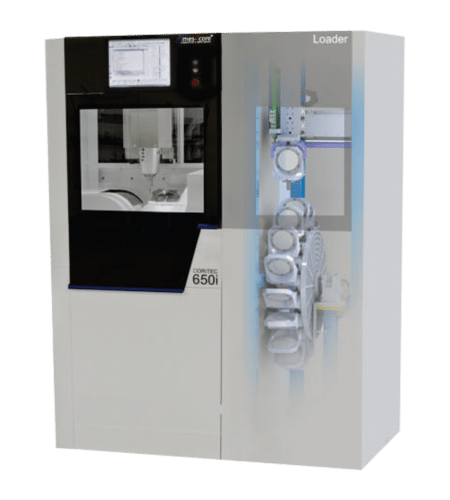

CORiTEC 650i/
650i Loader

Granite axis structure with dynamic linear & torque motors.

Premium quality with future-oriented technology, The CORiTEC 650i & 650i Loader features full automation with an automatic material changer for continuous production of high-quality parts.

Premium Machine for Premium Requirements

The CORiTEC 650i and 650i Loader systems were developed to embrace a very reasonable price level while being equipped with high-quality industrial milling technologies, such as granite structure, direct drives, digital length measuring systems, and a powerful main spindle. The CORiTEC 650i & 650i Loader impress with their precise, vibration-free and dynamic motion sequences for demanding metal work.

CORiTEC 650i/650i Loader Key Highlights

CORiTEC 650i high quality materials spindle milling metal

High-Quality Features for High-Quality Production

The CORiTEC 650i/650i Loader feature several premium features for professional results, including:  A highly dynamic, 5-axis, polished natural granite axis structure, with absolute, high-resolution measuring systems on all axes, 32-fold fully automatic tool changer, a high-frequency spindle (up to 62,000 rpm) and much more.

coreitec 650i 5-axis milling metal materials

Efficient Milling of Multiple Materials

The CORiTEC 650i & 650i Loader are able to easily mill many materials, including several metals,  because of their natural granite composition. These materials include, but are not limited to: CoCr/NEM, Titanium, Zirconium Dioxide, Aluminum Odixe, PMMA, wax, plastis, composites, and ceramics.

CORiTEC 650i/650i Loader Specifications

# of Axles & Machining Type
# of Axles & Machining Type
5 axes, simultaneous machining
Max. Tilt Angle (Rotary Axis)
Max. Tilt Angle (Rotary Axis)
A-axis +/- 30 degrees | B-axis +/- 25 degrees
Wet Processing
Wet Processing
Integrated
Spindle Max.
Spindle Max.
62,000 rpm / 2.3kW
Axle Drives
Axle Drives
linear & torque motors, 0.5 μm resolution
Tool Fitting
Tool Fitting
HSK 25
Tool Changer
Tool Changer
32-fold with chip protection cover
Workpiece Changer
Workpiece Changer
12 fold fully automatic (in preparation)
Weight
Weight
625kg / 930kg with Loader
Width x Depth x Height
Width x Depth x Height
790 x 800 x 1800mm
1325 x 1100 x 1940 mm with Loader
Main voltage/frequency/power
Main voltage/frequency/power
100V-240V/50-60Hz/2300W
Compressed Air Supply
Compressed Air Supply
6-9 bar constant supply, 80 litres/minute
6-9 bar constant supply, 100 litres/minute (with Loader)
Materials
Materials
CoCr/NEM, titanium, zirconium dioxide, alimunium oxide, PMMA, plastics, composites, wax, glass ceramics, hybrid ceramics
Compatibility
Compatibility
98mm/98.5mm blanks CAD/CAM blocks, NT-Trading pre-milled abutments, Medentika PreFace abutments, Lava frames
