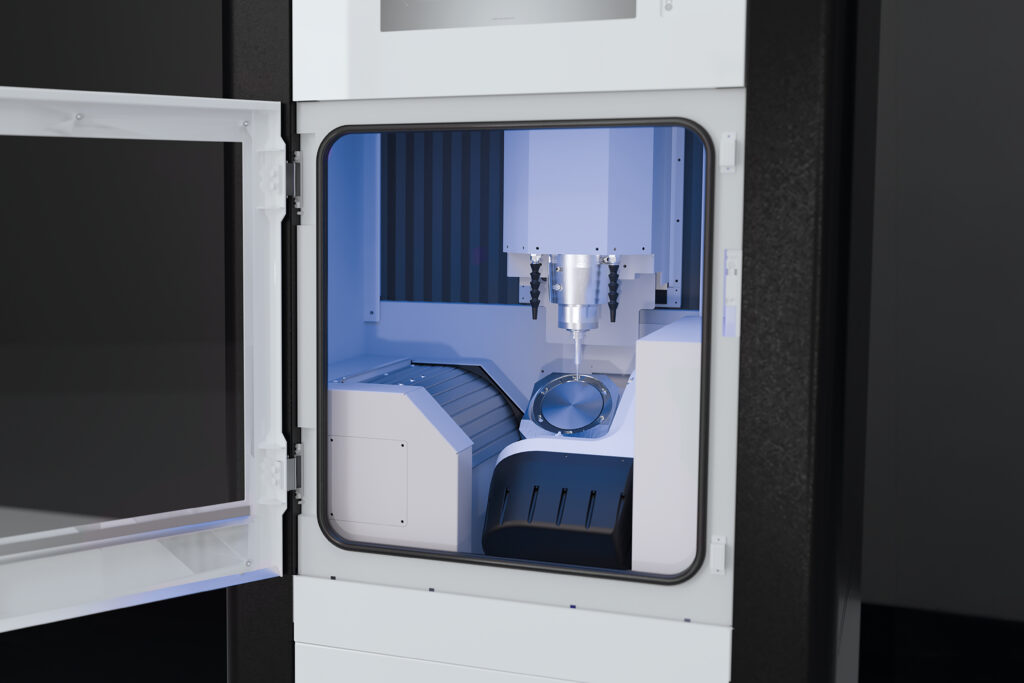

CORiTEC 650i / 650i Loader
With Future-Oriented Technology
We developed the CORiTEC 650i and CORiTEC 650i Loader machine systems for the area of PREMIUM machines and PREMIUM requirements. The systems are offered with very attractive pricing and are equipped with high-quality industrial milling technologies, such as granite structure, linear drives in the linear axes, torque motors in the rotary axes, as well as digital absolute length measuring systems, and powerful main spindles. The machine concept impresses with its precise, vibration-free and dynamic motion sequences in the demanding and complex metal working processes. All other relevant materials can also be milled or ground with high quality using this machine system. The CORiTEC 650i loader includes a fully integrated automatic 16-fold blank changer. This enables you to operate the machine system at full capacity around the clock without supervision, while maintaining consistent high precision. Thus, the machine system is ideally suited for large labs and milling centers, where these high-quality standards and large quantities are at the forefront.
Highlights
- Solid axis construction made of ground natural granite for
5-axis simultaneous machining - High dynamics for high-precision milling results
- Absolute, high-resolution measuring systems in all axes (0.5 μm)
- High-frequency spindle up to 50,000 rpm and 3.2 kW power with
HSK 25 tool holder - High precision due to integrated temperature compensation
- 16-fold fully automatic workpiece changer
- Production possible around the clock

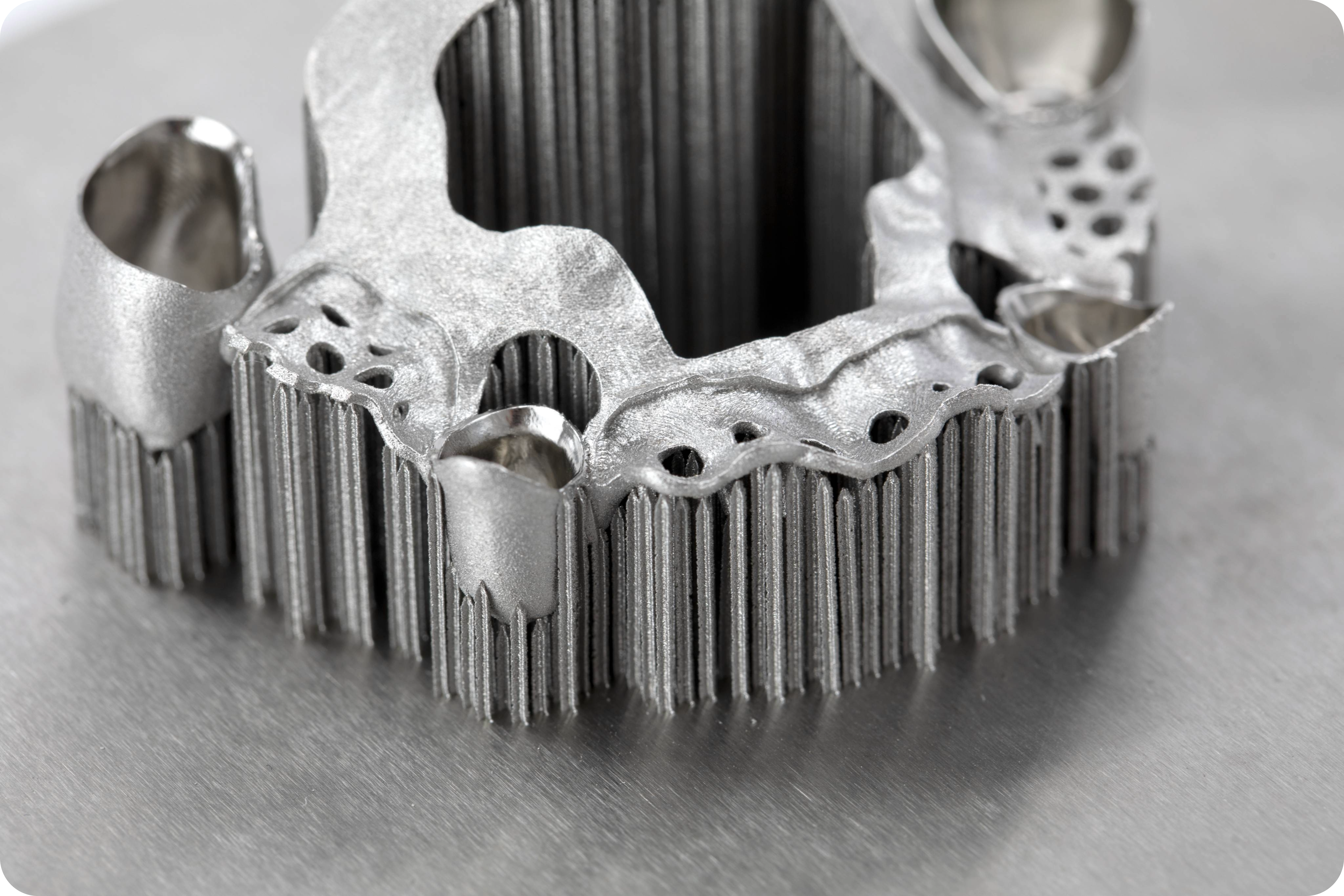

- Hybrid machining (precise remilling of SLM work)
- Suitable for large laboratories or milling centers
Available in two versions

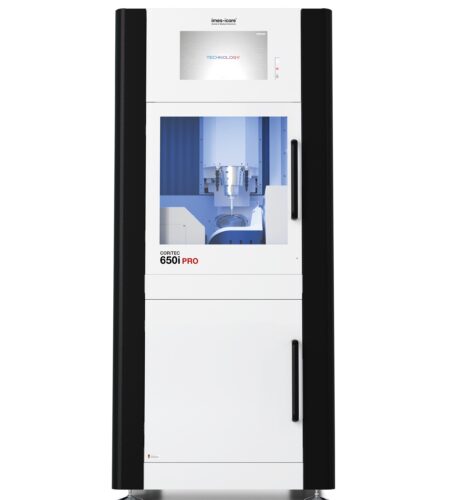

CORiTEC 650i
Solid axle structure
made of polished natural granite
high frequency spindle
up to 50,000 rpm and 3.2 kW power
with HSK 25 tool holder
CORiTEC 650i Loader
16-fold fully automatic
workpiece changer
high frequency spindle
up to 50,000 rpm and 3.2 kW power
with HSK 25 tool holder
CORiTEC 650i/650i Loader Key Features

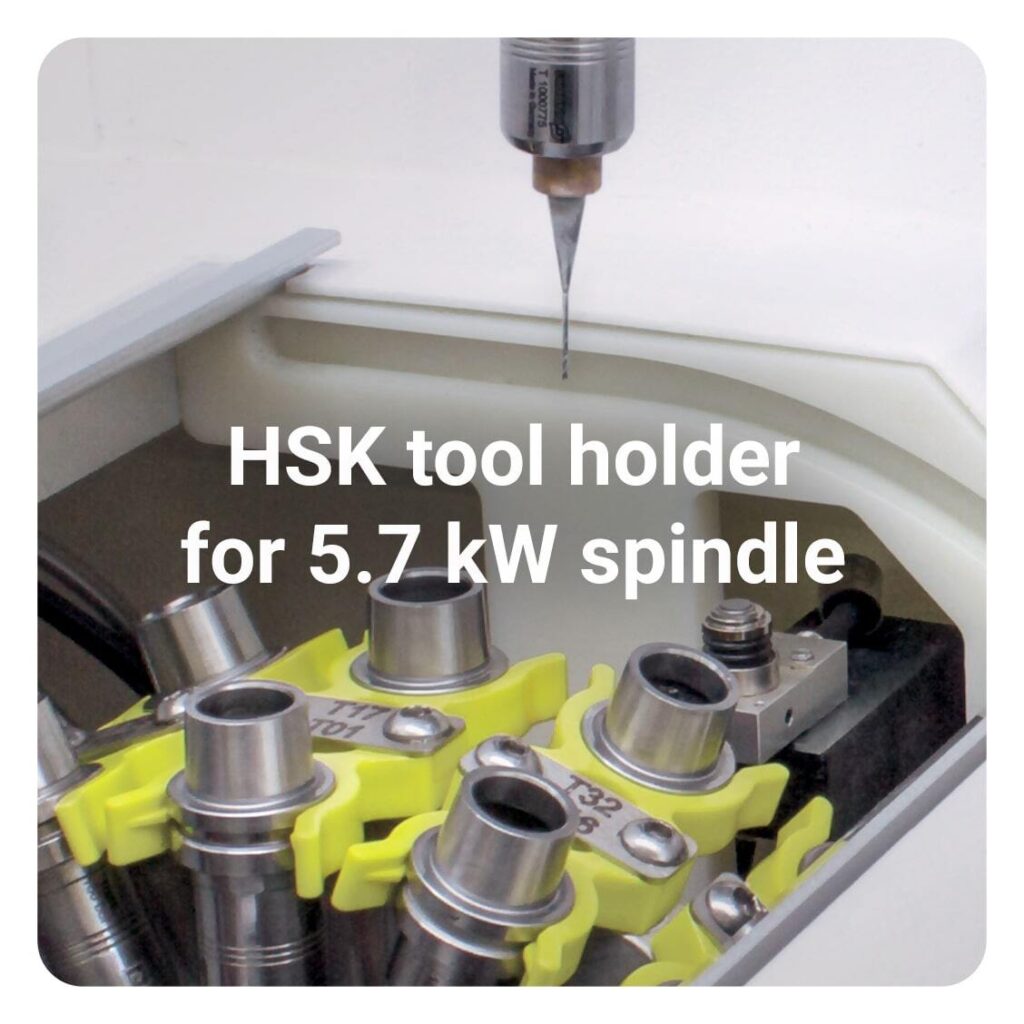

- Tool Changer – 32-fold tool changer
- High-Performance Performance – High-Resolution absolute measuring systems in all axes
- Machining – wet and dry machining possible
- Ergonomic Handling – Simple touchscreen operation
- Technology – Leading Linear and Torque montor Technology
- 24 Hours Production – Full Performance
- Wet processing possible
- Dry milling possible
- 5-axis simultaneous machining
- 32 milling tools with 6 mm shaft diameter
- Temperature compensation
- Simple operation via touch screen
- Abutment
- Milling of blocks possible
- 16-fold loader
Applications
CORiTEC 650i/650i Loader Specifications
Dimensions (W x D x H) in mm |
Dimensions (W x D x H) in mmCORiTEC 650i: 785 x 1100 x 1940 / CORiTEC 650i Loader CORiTEC 650i: 1325 x 1100 x 1940 |
Number of axes |
Number of axes5 |
Number of tool positions |
Number of tool positions32 |
Pmax~ maximum spindle speed |
Pmax~ maximum spindle speed3,2 kW 50.000 rpm |
Drive motors |
Drive motorsLinear motors & Torque motors |
Blank change / Number of blank holder |
Blank change / Number of blank holderCORiTEC 650i: manual 1-fold blank holder / CORiTEC 650i Loader: automatic up to 16 blank holders |
Dry processing |
Dry processingIdeally suitable |
Wet processing |
Wet processingIdeally suitable |
Blank processing 98 / 98,5mm |
Blank processing 98 / 98,5mmIdeally suitable |
Block processing (CAD / CAM blocks) |
Block processing (CAD / CAM blocks)Ideally suitable |
Zirconium oxide / aluminium oxide |
Zirconium oxide / aluminium oxideIdeally suitable |
PMMA / Resins / PEEK / Composite / Wax |
PMMA / Resins / PEEK / Composite / WaxIdeally suitable |
Glass Ceramics / Hybrid Ceramics |
Glass Ceramics / Hybrid CeramicsIdeally suitable |
Sintered metal |
Sintered metalSuitable |
Chromium cobalt |
Chromium cobaltIdeally suitable |
Titanium |
TitaniumIdeally suitable |
Copings / Crowns / Inlay / Onlay |
Copings / Crowns / Inlay / OnlayIdeally suitable |
Bridges up to 3 items |
Bridges up to 3 itemsIdeally suitable |
Bridges up to 14 items |
Bridges up to 14 itemsIdeally suitable |
Telescopes |
TelescopesIdeally suitable |
Therapeutic splints (bite splints) |
Therapeutic splints (bite splints)Ideally suitable |
Tooth models |
Tooth modelsIdeally suitable |
Model cast |
Model castIdeally suitable |
Abutments on titanium adhesive basis |
Abutments on titanium adhesive basisIdeally suitable |
Prefabricated abutments of Ti /CoCr |
Prefabricated abutments of Ti /CoCrIdeally suitable |
One-piece abutments (Zr, resins) |
One-piece abutments (Zr, resins)Ideally suitable |
One-piece abutments (CoCr, titanium) |
One-piece abutments (CoCr, titanium)Ideally suitable |
Barr structures / one-piece abutment bridges on implants |
Barr structures / one-piece abutment bridges on implantsIdeally suitable |
